Power Extender

8,00 taxes inc.

38 in stock

SKU: PLCTR_PEX Category:

Description

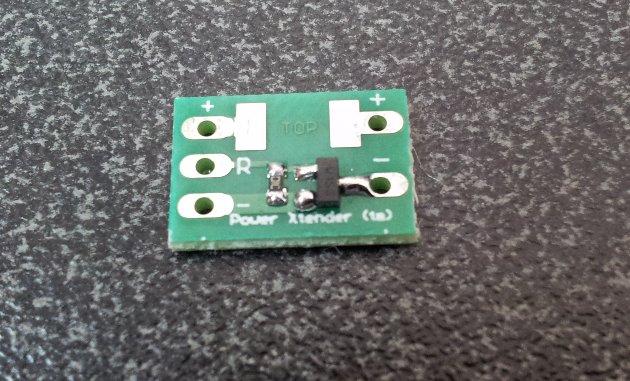

Miniature electronic circuit designed to drive/switch a high load (LED, rumbling motor, relay) when the low voltage/current output from our electronic boards does not allow it.
Drives for instance a 3.6V LED from a Blaster Core™ board or a luxeon from the Flash on Clash™ output of Crystal Focus™.
Refer to our electronic boards user’s manual for further details about the use of that module.

NEW : Now with embedded SMD 2512 resistor footprint. Saves space when using the Power Xtender™ to drive the Flash On Clash ™. Use with 2 watt 2512 thick carbon film resistor.

Dimensions : 14×9 mm
Remote signal input voltage : 0-5 volts max. Switches at 3.3V
Output (load) voltage/current : 12V / 1.5A

Additional information

Weight 0,01 kg
Dimensions 1,4 × 0,9 × 0,3 cm
